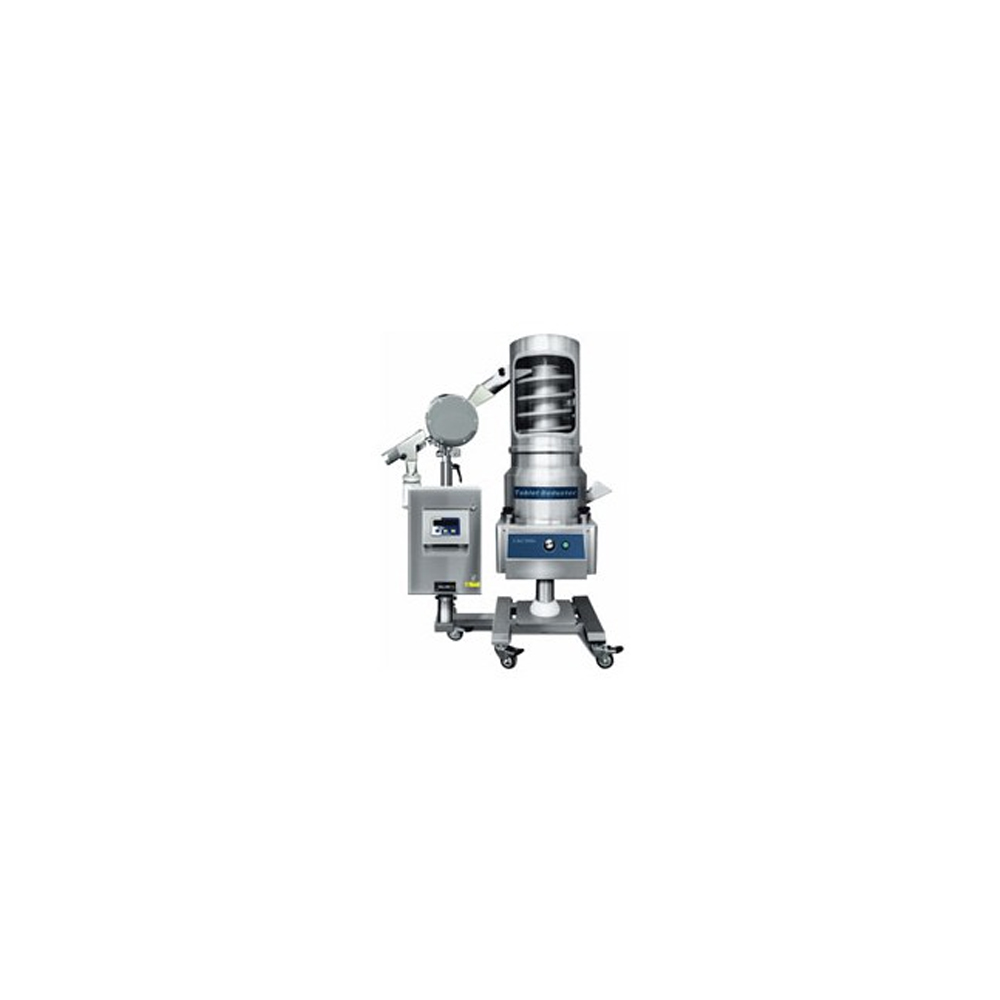

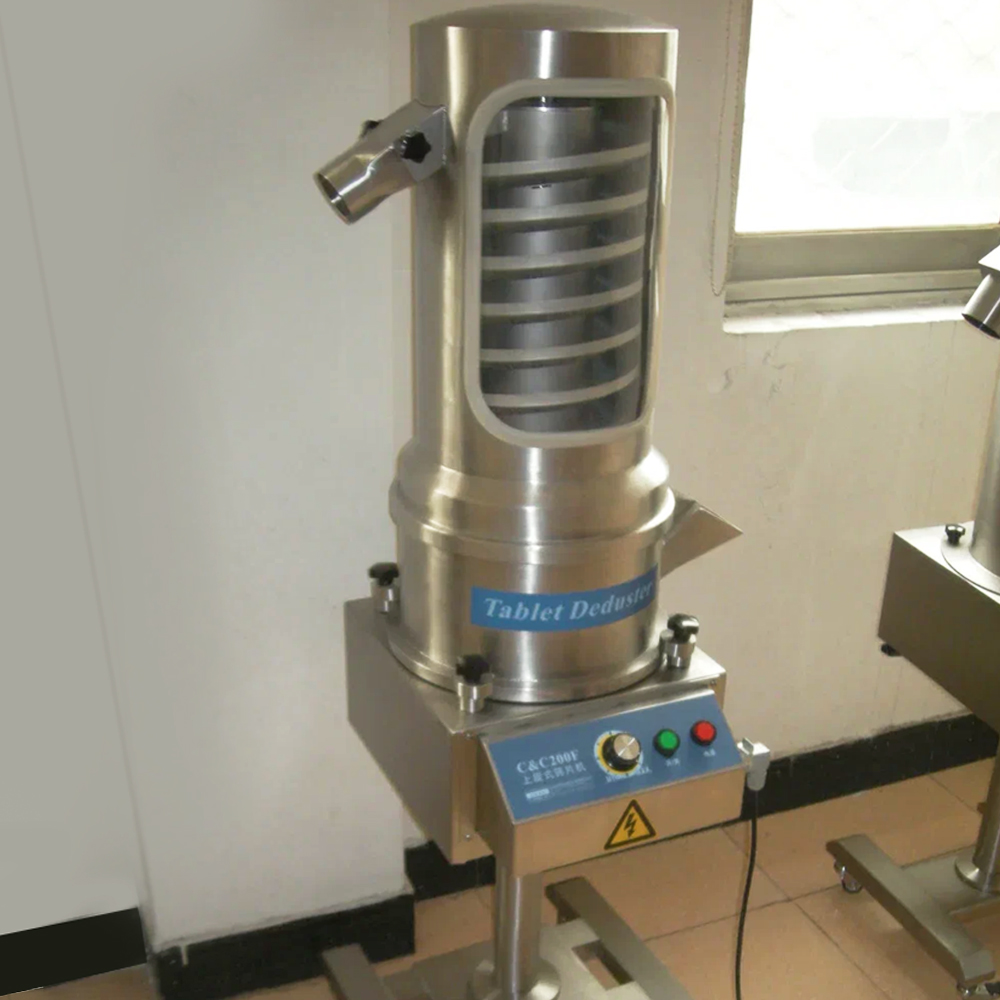

Dust Remover
The C&C200G series dust removers represent the latest model with an advanced design. Equipped with dual functionality for dust removal and upward tablet transfer. The inlet of the dust remover can be adjusted to match the height of any model of tablet press, and the outlet is aligned with a metal detector. This setup allows for the assembly of a production line that ensures dust removal, tablet lifting, and metal detection.
Why this configuration
Block construction of the machine body and cover
Easily adjustable tablet outlet height
Rotatable inlet and outlet (360 degrees) for convenience and maximum space savings
Quick assembly and disassembly with a reliable design
High productivity, capable of handling large batches of tablets from 3-35 mm in diameter
All parts in contact with tablets are made from stainless steel 316L
No 'dead' zones in the dust remover design for effective cleaning, fully GMP compliant
Reliable drive for stable and quiet operation
Features include dual-sided tablet polishing, high dust removal efficiency, modern design, and ease of transport
Talk to a specialist
Get detailed technical specifications, lead times, and export pricing for the dust remover.
- Response time
- < 24 hours
- Standard
- GMP
Specifications
| Model | C&C200G | C&C200G1 | C&C200G2 | C&C200G3 |
| Tablet Diameter | Φ3-Φ35 mm | |||
| Maximum Productivity | 1,800,000 tablets/hour (Φ6) | |||
| Inlet Height | 740-940 mm | |||
| Outlet Height | 1125-1325 mm | 1525-1725 mm | 1925-2125 mm | 2325-2525 mm |
| Dust Removal Path Length | 6.8 m | 11.1 m | 15.4 m | 19.7 m |
| Power Supply | 1PH 220V/110V 50Hz~60Hz | |||
| Compressed Air Consumption | 0.1 m³/min at 0.05 MPa | |||
| Vacuum Consumption | 2.7 m³/min at -0.1 MPa | |||
| Dimensions | 577x606x(1362-1562) mm | 577x606x(1762-1962) mm | 577x606x(2162-2362) mm | 577x606x(2562-2762) mm |
| Weight | 35 kg | 50 kg | 105 kg | 120 kg |
